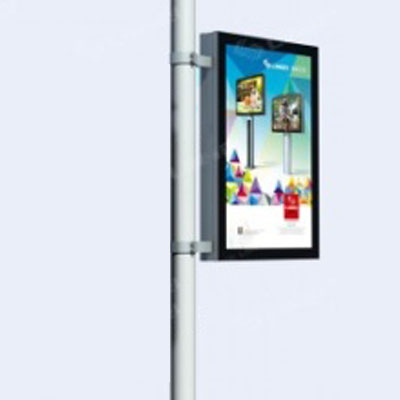

Single-Sided Billboard Pole
Heavy-duty outdoor signage infrastructure featuring ASTM-compliant hot-dip galvanized steel poles with modular mounting solutions for LED/LCD displays or traditional lightboxes. Engineered for structural integrity with 50,000+ hour corrosion resistance. Custom heights/finishes available.
Inquiry Now
- Description
Core Structure:
- Pole Material: Q235 carbon steel with ≥85μm zinc coating (ISO 1461 standard)
- Height Range: 3m-12m standard (custom up to 25m)
- Foundation System: Flange-base or direct burial options (2.5m depth min)
Mounting System:
- Arm Structure: Triangular bracing with 304 stainless steel hardware
- Display Interface: Universal mounting bracket system (compatible with 32"-85" displays/lightboxes)
- Cable Management: Internal conduit (Ø40mm) with waterproof glands
Performance & Customization:
- Wind Rating: 150km/h survivability (EN 40-3-3 certified)
- Surface Options: RAL color coating or mill finish
- Load Capacity: 150kg max display weight (adjustable reinforcement available)
