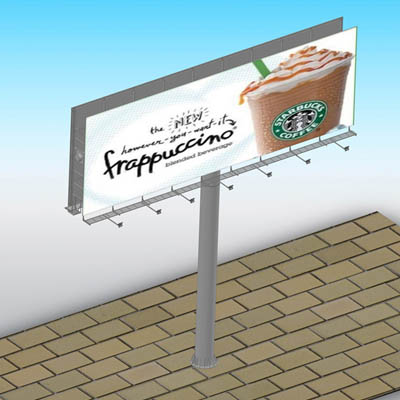

Double-Sided Billboard Pole
Engineered for highway/urban advertising infrastructure, this hot-dip galvanized steel tower features blank-ready dual advertising faces with integrated lighting. Built to withstand 150km/h winds with ≥25-year corrosion resistance per ISO 1461 standards. Customizable heights from 6m to 18m.
Inquiry Now
- Description
Core Structure
| Component | Specification | Standard |
|---|---|---|
| Main Column | Ø219×6mm Q345B steel | GB/T 1591-2018 |
| Surface Treatment | Hot-dip galvanizing (≥86μm Zn coating) | ISO 1461 |
| Column Height | 6m-18m customizable | EN 40-3:2013 |
Advertisement Framework
| Parameter | Value |
|---|---|
| Panel Dimensions | 4m (W) × 3m (H) per face (standard) |
| Frame Material | 120×120×5mm square hollow section (Q235B) |
| Wind Load Capacity | 150 km/h sustained winds |
Illumination System
- Luminaires: 6× LED floodlights (top-mounted)
- Waterproofing: IP65-rated aluminum housing
- Power Supply: 220V AC (cable routing via internal conduit)
- Light Uniformity: ≥0.7 (EN 13201-2 compliant)
Installation Engineering
- Foundation: Direct burial 2.5m deep or reinforced concrete base
- Steel Column Erection: Laser-leveled verticality ≤0.2°
- Frame Assembly: Bolted connections (M20×150)
- Lamp Wiring: VDE-certified junction box
Quality Assurance & Testing
1,Galvanization Integrity
- Salt spray test: 5,000 hours (ASTM B117)
- Coating thickness verification: 8-point magnetic testing
2,Structural Validation
- Finite Element Analysis (FEA) scenarios:
- 150km/h wind + 30mm ice load
- Seismic zone III (0.3g acceleration)
- Site load test: 1.5× design load applied
3,Environmental Compliance
- Material traceability: Mill test certificates
- RoHS-compliant coatings
Note: Blank panel surfaces shown in image accommodate client-specific media - digital displays (up to 85"), printed vinyl, or lightbox systems. Lighting provisions include pre-wired 32A circuits for future display integration.
